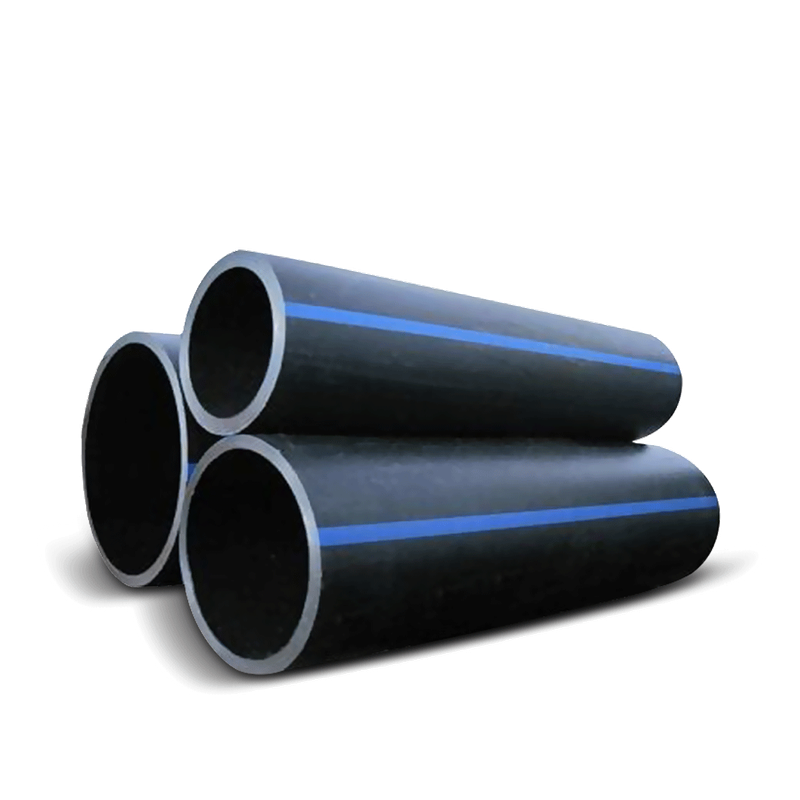

HDPE PIPES

HDPE PIPES

High density polyethylene pipes (HDPE) can carry potable water, wastewater, slurries, chemicals, hazardous wastes, and compressed gases.

HDPE Pipes have a long and distinguished history of servicing gas, oil, mining, and other industries. They have the lowest repair frequency per mile per year, compared to other pressure pipe materials used for urban gas distribution.

Polyethylene is strong, extremely tough, and highly durable. Whether you’re looking for long service, trouble free installation, flexibility, resistance to chemicals, firefighting or a myriad of other features, high-density polyethylene pipe will fulfill all your requirements.

ISO 4427

• Adheres to International Standards ISO 4427
• Usage: Polyethylene (PE) pipes for water supply
• Size Range: 50mm to 315mm
• Pressure Rating: PN10, PN16, PN20
• Standard Dimensional Ratio: SDR17, SDR11, SDR09
• Available in 6-meter, 12-meter and rolls with blue stripe

EN13244

• Adheres to International Standards EN 13244
• Usage: Plastic piping systems for buried and above-the-ground pressure systems for general purposes, drainage and sewerage – Polyethylene (PE)
• Size Range: 50mm to 315mm
• Pressure Rating: PN20, PN16, PN10, PN6
• Standard Dimensional Ratio: SDR9, SDR11, SDR17, SDR26
• Available in 6-meter, 12-meter and rolls

PIPES FOR DUCTING

• Adheres to International Standards ISO 4427
• Usage: Polyethylene (PE) pipes for electrical ducting application
• Size Range: 50mm to 315mm
• Pressure Rating: PN6 & PN10
• Standard Dimensional Ratio: SDR26 & SDR17
• Available in 6 meters, 12 meters, and rolls

FM APPROVED PIPES FOR FIRE FIGHTING

ISO 4427

• Usage: Polyethylene (PE) pipes for Firefighting applications
• Size Range: 50mm to 315mm
• Pressure Rating: PN16, PN20
• Standard Dimensional Ratio: SDR11, SDR9
• Available in 6-meter, 12-meter and rolls with red stripe

AWWA 906

• Adheres to International Standards AWWA906
• Usage: Polyethylene (PE) pipes for Firefighting applications
• Size Range: 50mm to 315mm
• Pressure Rating: PN16, PN20
• Standard Dimensional Ratio: SDR11, SDR9
• Available in 6-meter, 12-meter and rolls with red stripe

PIPES FOR DRAINAGE

EN1519

• Color: All black or black with white cream stripe
• Soil & Waste Pipes: S16 series pipes marked with “B” are intended to be used within the building structure or outside the building but attached to one of the walls
• Underground Pipes: S12.5 series pipes marked with “B” are intended to be used aboveground and buried in ground within the building structure
• Size Range: 50mm to 315mm
• Available in 4-meter and 6-meter with orange stripes
