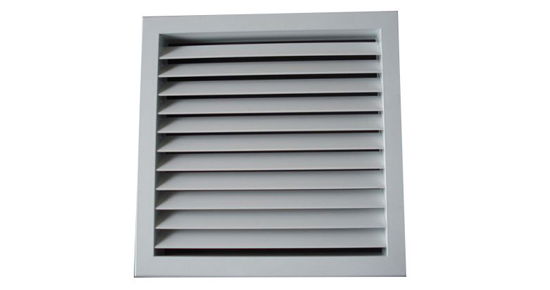

AIR EXHAUST LOUVERS

Air Exhaust Louvers

Model: AP-WL-1W/D/F

1W - Wall mounted; 1D - Duct mounted; 1F - Flush mounted & Hoist Air lower/Fresh air Cover

Our weather Louvers is designed with weather proof external coating for air inlets and discharge openings, suitable for most external walls and screening applications. The WL is composed of frame and horizontal blade assembly, manufactured from high quality extruded aluminium profiles. Blades are fixed rigidly to the main frame by rivets and sets at angle of 45/35 deg to the horizontal with 40/60/80 mm spacing to incline downward to protect against rain water. We manufactured them in accordance to AMCA standards for pressure drop & efficiency. We can also supply them with bird screen & aluminium filter for fresh air intake. Weather louvers are composed of frame and horizontal blade assembly, manufactured from high quality extruded aluminium profiles / Galvanized steel sheet / Stainless steel with the advantages of corrosion resistance and rigidity. These Weather louvers constructions conforms the standards of ADC 1602 and DW142 class C.

Standard Color: RAL 9010/9016. Other Colour Options also Available
